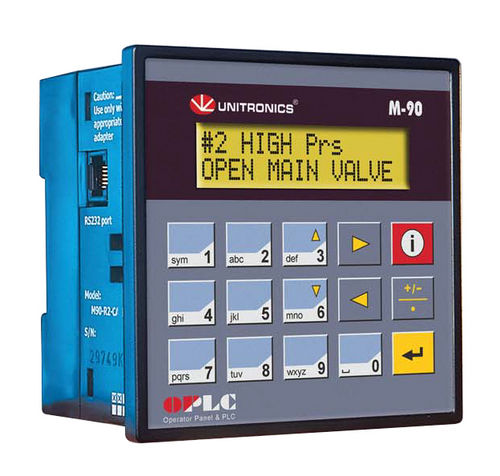

PLC

* Up to 38 onboard I/Os: Digital, Analog and temperature measurement inputs, Relay or Transistor outputs
* Shaft encoder inputs and PWM outputs
* I/O Expansion Modules: enable up to 96 digital I/Os plus additional analog, temperature and weight inputs (number/type vary according to model)
* RTC, enabling time-and-date controlled operations
* 24K-36K (virtual) Ladder code capacity
* Functions include: math, store/load, compare, and clock functions, plus immediate read/write to I/Os, interrupts and loops
* 1K database
* 4 PID loops including auto-tune
* Mounting: Panel or DIN-rail

HMI
* Two 16-character text lines, LCD illuminated screen
* Alphanumeric 16-key keypad, for data entry and to initiate tasks
* Multilingual display- supports over 15 languages
* Up to 80 user-designed screens, displays conditional messages
* Display conditional text, time, date, bit status, timer & integer values (up to 64 HMI variables per application)
* "List" variables: link up to 150 messages to a single variable, to add 2K's of conditional text. "List" variables allow easy scrolling between recipes/menus via the keypad
* Info mode: view I/O status, integer values, and system data on the LCD display


Communications
* RS232 or RS232/RS485 serial communication port
* GSM/SMS support
* Remote access via network GPRS, GSM, CDMA or landline modems
* Data Export to/from Excel
* MODBUS (master/slave)
* CANbus port (model dependent)
* OPC/DDE server

Parameter Name	Parameter Value
Type	panel-mount
Input/output	8-I
Network	RS485 for fieldbus
Other characteristics	with integrated text-based HMI
